SUBJECT CATALOG - CSV IMPORT

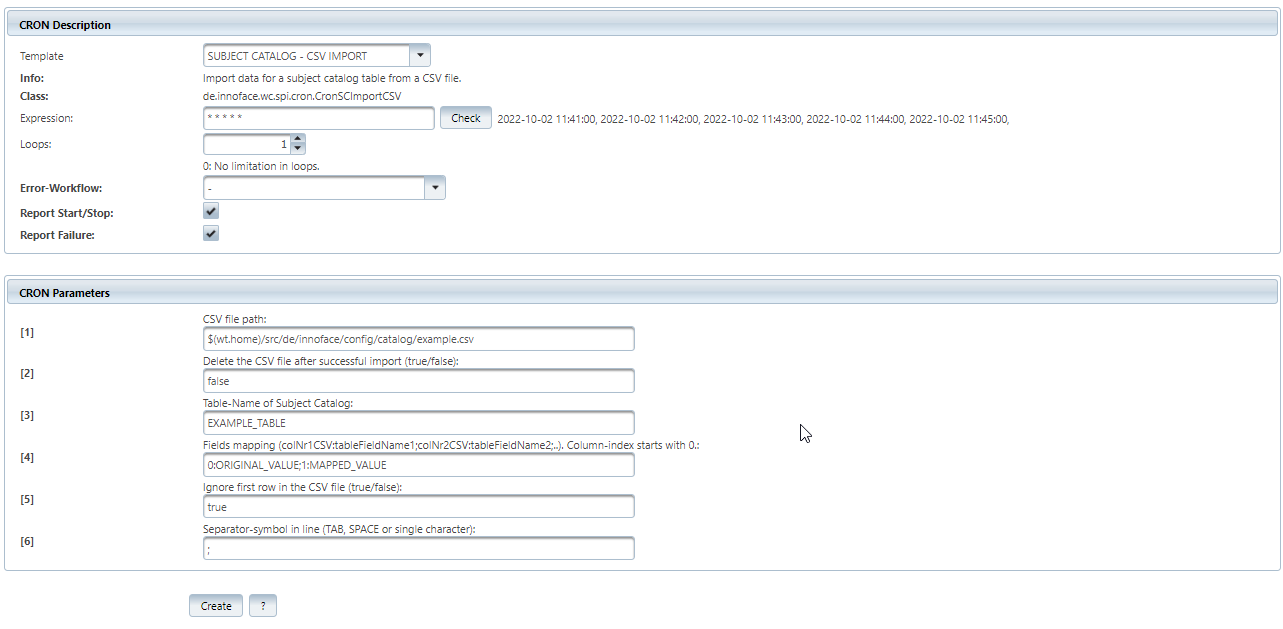

SUBJECT CATALOG - CSV IMPORT serves for the recurrent import of data in the CSV format for a subject catalog in IFConneX.




Parameter

Parameter

Description

Path to the CSV file

Source file with the data for the import.

Delete the CSV file after a successful import

Delete the source file after the successful import.

Table name of the subject catalog

Database name of the subject catalog. The table has to be defined in the system.

Field assignment

Assignment of the CSV data rows to the database rows.

Ignore first line in the CSV file

Definition whether the first line of the CSV file should be ignored.

Delimiter in line

Definition of the row delimiter in a line. For tabulators, the symbol TAB and for blanks, the symbol SPACE should be used.
